Iron material

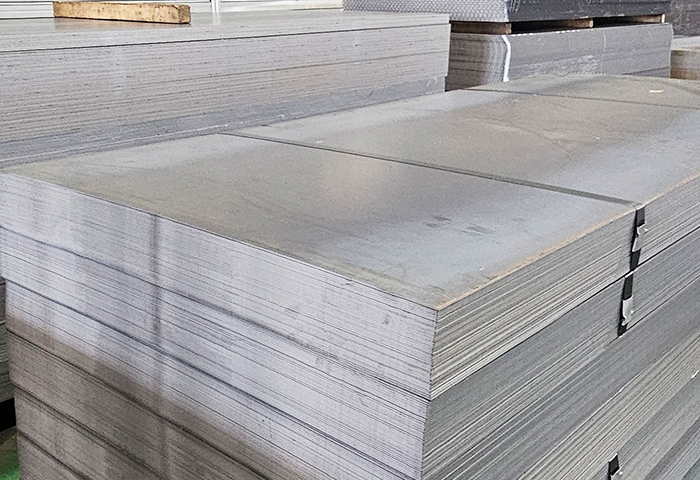

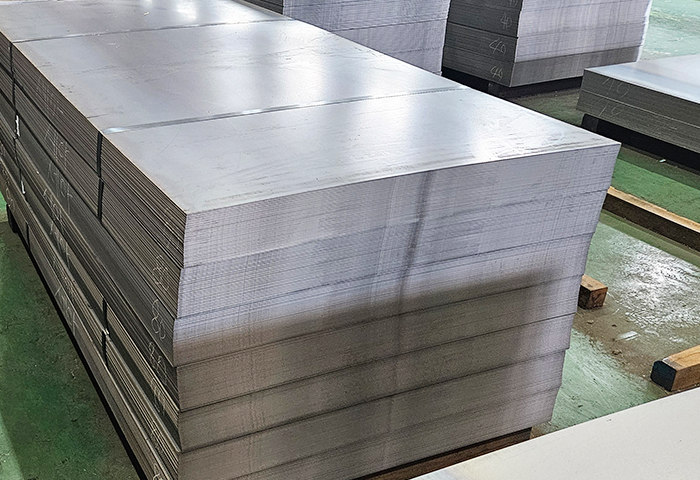

철판 (STEEL PLATE)

두께 규격(mm m/m)	1매의 중량 (kg)
	914*1829	1219*2438	1219*3048	1219*6096	1524*3048	1524*6096	1524*9144	1829*3048	1829*6096	1829*9144	2438*6096
	3'*6'	4'*8'	4'*10'	4'*20'	5'*10'	5'*20'	5'*30'	6'*10'	6'*20'	6'*30	8'*20'
1.6	21.0	37.3			58.3	117	175
2.0	26.3	46.7			73.0	146	219
2.3	30.2	53.7			83.9	168	252
3.0	39.4	70.0	87.5	175	109	219	328	131	263	394
3.2	42.0	74.7	93.3	187	117	233	350	140	280	420
4.0	52.5	93.3	117	233	146	292	438	175	350	525	467
4.5	59.1	105.0	131	262	164	328	492	197	394	591	535
5.0	65.6	117.0	146	292	182	365	547	219	438	656	583
5.5	72.2	128	160	321	201	401	602	241	481	722	642
6.0	78.8	140	175	350	219	438	657	263	525	788	700
7.0	91.9	163	204	408	255	510	766	306	613	919	817
8.0	105	187	233	467	292	583	875	350	700	1,050	933
9.0	118	210	263	525	328	656	985	394	788	1,181	1,050
10.0	131	233	292	583	365	729	1,094	438	875	1,313	1,167
11.0	144	257	321	642	401	802	1,204	481	963	1,444	1,283
12.0	158	280	350	700	438	875	1,313	525	1,050	1,575	1,400
13.0	171	303	379	758	474	947	1,422	569	1,137	1,705	1,517
14.0	184	327	408	817	510	1,021	1,532	613	1,225	1,838	1,633
15.0	197	350	438	875	547	1,094	1,642	657	1,313	1,970	1,749
16.0	210	373	467	933	583	1,167	1,751	700	1,400	2,100	1,865
17.0	223	396	496	991	620	1,239	1,860	744	1,487	2,230	1,981
18.0	263	420	525	1,050	656	1,313	1,970	788	1,575	2,363	2,097
19.0	249	443	554	1,109	693	1,386	2,080	832	1,664	2,495	2,217
20.0	263	467	583	1,167	729	1,459	2,189	875	1,751	2,625	2,333
21.0	276	490	612	1,225	765	1,531	2,297	919	1,838	2,755	2,450
22.0	289	513	642	1,283	802	1,604	2,407	963	1,926	2,888	2,566
23.0	302	537	671	1,342	839	1,678	2,518	1,007	2,014	3,020	2,684
24.0	315	560	700	1,400	875	1,750	2,626	1,050	2,101	3,150	2,800
25.0	328	583	729	1,458	911	1,823	2,735	1,094	2,188	3,280	2,916
26.0	341	607	758	1,517	948	1,896	2,845	1,138	2,276	3,413	3,033
27.0	354	630	788	1,575	985	1,969	2,955	1,182	2,364	3,545	3,150
28.0	368	653	817	1,633	1,021	2,042	3,064	1,225	2,451	3,675	3,266
29.0	381	676	846	1,691	1,057	2,114	3,173	1,269	2,538	3,805	3,384
30.0	394	700	875	1,750	1,094	2,188	3,283	1,313	2,626	3,938	3,500
31.0	407	723	904	1,809	1,131	2,261	3,393	1,357	2,714	4,070	3,611
32.0	420	747	933	1,867	1,167	2,334	3,502	1,400	2,801	4,200	3,733
33.0	433	770	962	1,925	1,203	2,406	3,610	1,444	2,888	4,330	3,850
34.0	446	793	992	1,983	1,240	2,480	3,721	1,488	2,976	4,463	3,966
36.0	473	840	1,050	2,100	1,313	2,625	3,939	1,575	3,151	4,725	4,200
38.0	499	887	1,108	2,217	1,386	2,771	4,158	1,663	3,326	4,988	4,433
40.0	525	933	1,167	2,333	1,459	2,917	4,377	1,751	3,501	5,250	4,666
45.0	591	1,050	1,312	2,625	1,641	3,281	4,924	1,969	3,938	5,906	5,250
50.0	656	1,167	1,459	2,917	1,823	3,646	5,471	2,188	4,376	6,563	5,833
55.0	722	1,283	1,605	3,209	2,006	4,011	6,019	2,407	4,815	7,220	6,417
60.0	788	1,400	1,750	3,500	2,188	4,376	6,566	2,626	5,252	7,875	7,000
65.0	853	1,516	1,896	3,791	2,370	4,740	7,112	2,844	5,689	8,531	7,583
70.0	919	1,633	2,402	4,093	2,553	5,105	7,658	3,063	6,127	9,190	8,170
75.0	984	1,750	2,188	4,375	2,735	5,470	8,205	3,282	6,564	9,846	8,750
80.0	1,050	1,866	2,333	4,667	2,917	5,834	8,751	3,501	7,002	10,503	9,330
85.0	1,115	1,983	2,479	4,958	3,099	6,199	9,298				9,917
90.0	1,181	2,100	2,625	5,250	3,282	6,564	9,845				10,500
100.0	1,312	2,333	2,917	5,833	3,646	7,293	10,939				11,668

냉간압연강판 (STEEL PLATE)

두께(mm)	9141,829(3'6')			1,2192,438(4'8')
	1.672㎡			2.972㎡
	매당중량(kg)	톤당 매수와 중량		매당중량(kg)	톤당 매수와 중량
	매당중량(kg)	매수 (sheet)	중량 (kg)	매당중량(kg)	매수 (sheet)	중량 (kg)
0.18	2.36	424	1,001	4.20	238	1,000
0.20	2.63	380	999	4.67	214	999
0.23	3.02	331	1,000	5.37	186	999
0.25	3.28	305	1,000	5.83	172	1,003
0.27	3.54	282	998	6.30	159	1,002
0.30	3.94	254	1,001	7.00	143	1,001
0.33	4.33	231	1,000	7.70	130	1,001
0.35	4.59	218	1,001	8.17	122	997
0.40	5.25	190	998	9.33	107	998
0.45	5.91	169	999	10.5	95	998
0.50	6.51	152	997	11.7	85	994
0.55	7.22	139	1,004	12.8	78	998
0.60	7.88	127	1,001	14.0	71	994
0.70	9.19	109	1,002	16.3	61	994
0.80	10.5	95	998	18.7	53	994
0.90	11.8	85	1,003	21.0	48	1,008
1.0	13.1	76	996	23.3	43	1,002
1.2	15.8	63	995	28.0	36	1,008
1.4	18.4	54	994	32.7	31	1,014
1.5	19.7	51	1,005	35.0	29	1,015

철판망 규격 및 용도

용 도	MODEL		MESH		STRAND		3'*6'	4'*8'
용 도	KS	JIS	SWM	LWM	T(m/m)	W(m/m)	kg	kg
STANDARD TYPE 1. Metal Lath용 2. 시설물과 안전보호용 3. 버스의 엔진 커버 4. 외관 장식용	SS-132	XS-32	12.7	30.5	1.6	2.0	7.0	12.4
	SS-133	XS-33	12.7	30.5	2.3	3.0	15.1	26.8
	SS-241	XS-41	23.4	52.0	1.6	2.0	3.81	6.78
	SS-242	XS-42			2.3	2.5	6.86	12.2
	SS-243	XS-43			3.2	3.5	13.4	23.8
STANDARD TYPE 1. 검사통로 2. 견학통로 및 계단 3. 구조물 설치용 4. P.S.P 대용 5. Check Plate 및 Grating 대용	SG-362	XG-21	35.9	101.6	4.5	7.0	22.9	40.7
	SG-363	XG-22			6.0	7.0	30.6	54.4
	SG-364	XG-23			6.0	9.0	39.5	70.1
	SG-342-1	XG-11	33.9	136.1	4.5	7.0	24.2	43.1
	SG-343-1	XG-12			6.0	7.0	32.4	57.7
	SG-344-1	XG-13			6.0	9.0	41.6	74.0
FENCE TYPE 1. 고속도로 중앙분리 및 차광 Fence 2. 공장,주택 공원 등의 Fence	SS-341	XS-61	33.9	80.0	2.3	3.0	5.33	9.48
	SS-342	XS-62			3.2	4.0	9.88	17.6
	SS-343	XS-63			4.5	5.0	17.4	30.9
	SS-512	XS-72	50.8	152.4	3.2	4.0	13.4	26.9
	SS-513	XS-73	50.8	152.4	4.5	5.0	23.6	47.2

무늬강판 (CHECKERED PLATE)

공철 두께(mm)	단위 무게(kg/m)	3'*6'		4'*8'
공철 두께(mm)	단위 무게(kg/m)	kg/sheet	lbs/sheet	kg/sheet	lbs/sheet
3.2	26.79	44.8	98.7	79.8	175.9
4.5	37.00	61.9	136.4	110	242.4
6.0	48.77	81.6	179.8	145	319.6

* 무늬높이 : 1mm 이상 무늬폭 : 약 6mm 무늬길이 : 약 30mm 무늬중심간거리 : 약 24mm
